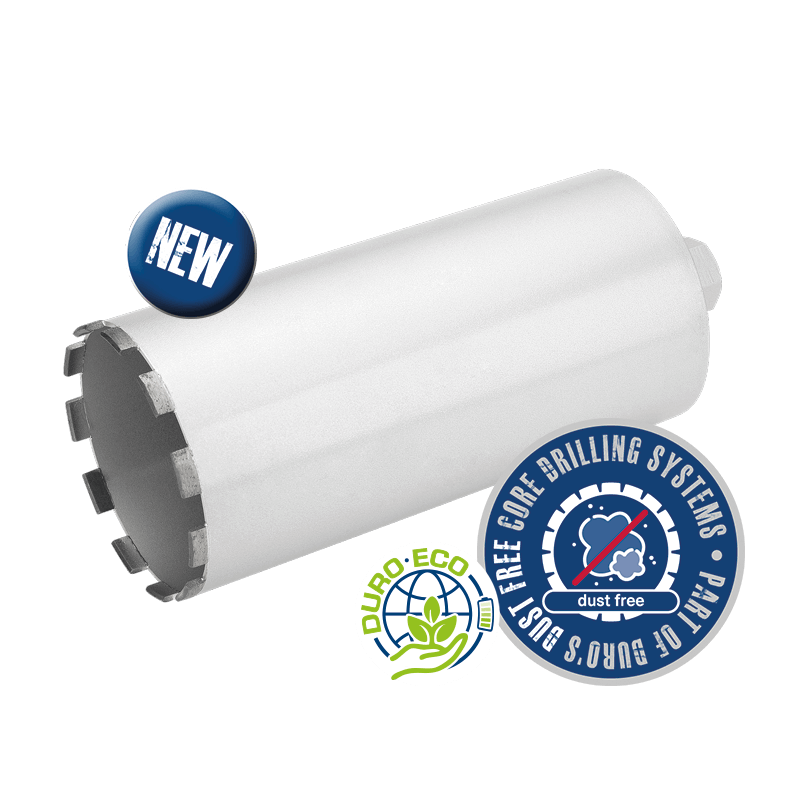

Ultra Heavy Duty Dust Free Dry Core Drills

DUDCC DRY CORE DRILLS

Description

THE DUST FREE ALTERNATIVE TO WET CORE DRILLING

DUDCC for rig based drilling of heavy duty materials including reinforced concrete.

When used with DD62 Drill Motor and DS25M Vacuum a dust free environment is created, no slurry, dust or mess.

These 300mm laser welded cores penetrate concrete at similar rates to wet drilling, just without the mess.

CORE DRILLING GUIDE: Material Types & Speed Recommendations – pdf »

Use me for…

All bricks including Class A & B Engineering / All types of Concrete including Light & Heavily Reinforced / Stone such as Hard York / Occasional use in Lightweight Block & Abrasive Stone.

For hand held and rig mounted use.

Designed for use with Dust Extraction Range: New DD62 Drill Motor – Direct Fit / B14 Drill Rig / DS25M M-Class Vacuum.

DUST FREE DRY CORE DRILLING

DUDCC for rig based drilling of heavy duty materials including heavily reinforced concrete
  • 10mm Roof Top Segments
  • Use With Range Of Duro Dust Free Products
  • All Sizes Direct Fit To DD62 Drill Motor
  • Extensions Available
  • Laser Welded
  • 300mm Length
  • Back End: 32 & 42 - 1/2" BSP (M), All Other Sizes: 1 1/4" UNC

Sizing Options

R½ = ½” BSP (M) Fitting

Part numberDiameterPackagingBack EndLength
32DUDCC x R½32mmBOX½ BSP300mm
42DUDCC x R½42mmBOX½ BSP300mm
52DUDCC52mmBOX1¼ UNC
300mm
65DUDCC65mmBOX1¼ UNC300mm
70DUDCC70mmBOX1¼ UNC300mm
77DUDCC77mmBOX1¼ UNC300mm
82DUDCC82mmBOX1¼ UNC300mm
92DUDCC92mmBOX1¼ UNC300mm
102DUDCC102mmBOX1¼ UNC300mm
107DUDCC107mmBOX1¼ UNC300mm
112DUDCC112mmBOX1¼ UNC300mm
117DUDCC117mmBOX1¼ UNC300mm
127DUDCC127mmBOX1¼ UNC300mm
132DUDCC132mmBOX1¼ UNC300mm
142DUDCC142mmBOX1¼ UNC300mm
152DUDCC152mmBOX1¼ UNC300mm
162DUDCC162mmBOX1¼ UNC300mm
172DUDCC172mmBOX1¼ UNC300mm
182DUDCC182mmBOX1¼ UNC300mm
202DUDCC202mmBOX1¼ UNC300mm

All sizes direct fit to DD62.
Extend with EXT2-DRY-150 – 150mm for EXT2-DRY-300 – 300mm Adaptors up to 52mm
Extend with EXT1-DRY-250mm Adaptor above 52mm



the dust free drilling process explained

A simple process but incredibly efficient.

The AGP DS25M Vacuum is incredibly powerful, extracting the dust all the way from the cut:

DUDCC dust free drilling system explained

➀ Through the solid barrel DUDCC core
➁ Direct through the hollow spindle on the drill DD62 motor
➂ Into the DS25M M class vacuum via the hose. 100% effective and comparable drilling speed to wet drilling

DD62 DRILL MOTOR

FULL DETAILS »

DS25M m class vacuum

FULL DETAILS »

AGP DS25M-m class vacuum

B14 Drill Rig

FULL DETAILS »

B14 drill rig adamas
