Wet Diamond Core Drill

DPWC

Description

A range of professional wet diamond cores for high speed drilling and useful long life times.

Use me for…

Reinforced and non-reinforced concrete plus hard brick and block – shorter and longer length wet cores are available in addition to the sizes listed.

Find a Stockist Download Data Sheet Watch Video

PROFESSIONAL QUALITY WET DIAMOND CORE DRILLS

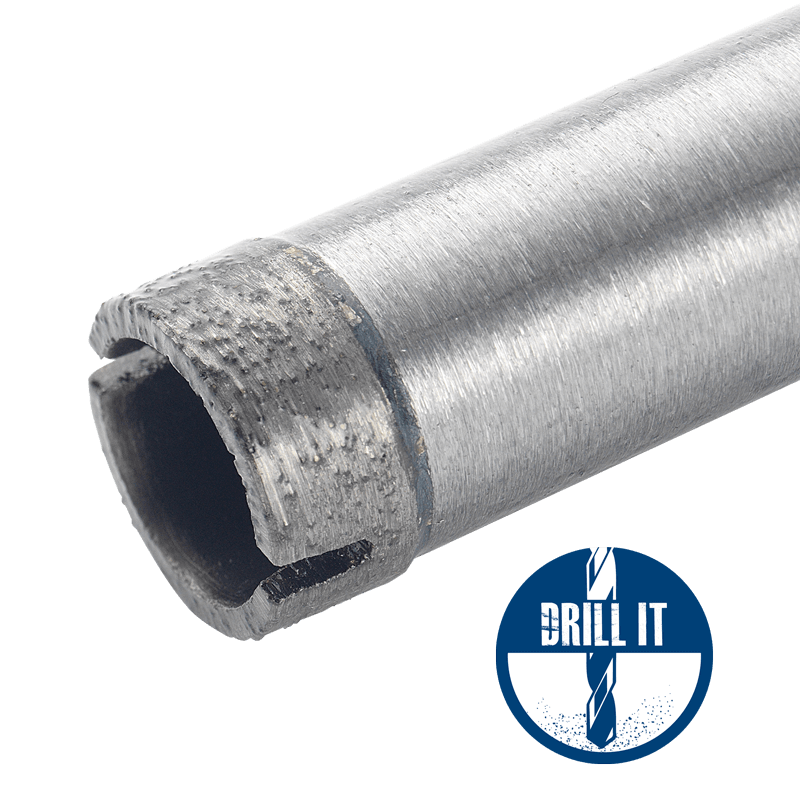

CONTINUOUS CROWN AND SEGMENTED CORES
  • (Crown) 8mm segment height / (Segment) 10mm segment height
  • (Crown) Continuous crown / (Segment) Turbo - roof top segments
  • (Crown) Requires water cooling / (Segment) 1/2"BSP(M) x 320mm - up to 52mm
  • (Segment) 1-1/4"UNC(F) x 450mm - 52mm and above
  • (Segment) 1-1/4"UNC(F) x 500mm - 202mm and above

Sizing Options

Part number Diameter Packaging Back End Length Segment / Crown
10DPWC 10mm TUBE ½” BSP(M) 200mm Crown
12DPWC 12mm TUBE ½” BSP(M) 200mm Crown
14DPWC 14mm TUBE ½” BSP(M) 320mm Crown
16DPWC 16mm TUBE ½” BSP(M) 320mm Crown
18DPWC 18mm TUBE ½” BSP(M) 320mm Crown
20DPWC 20mm TUBE ½” BSP(M) 320mm Crown

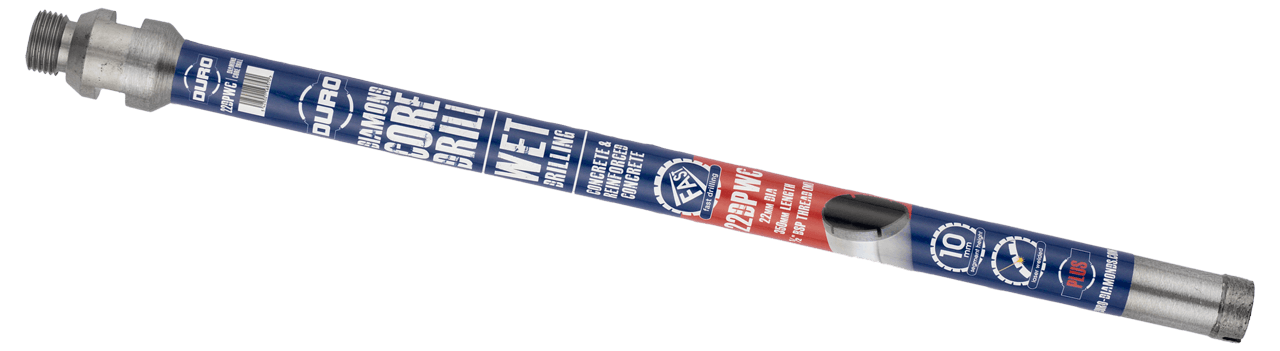

22DPWC 22mm TUBE ½” BSP(M) 320mm Crown
24DPWC 24mm TUBE ½” BSP(M) 320mm Crown
25DPWC 25mm TUBE ½” BSP(M) 320mm Crown
28DPWC 28mm TUBE ½” BSP(M) 320mm Crown
30DPWC 30mm TUBE ½” BSP(M) 320mm Crown
32DPWC 32mm TUBE ½” BSP(M) 320mm Segment
35DPWC 35mm TUBE ½” BSP(M) 320mm Segment
38DPWC 38mm TUBE ½” BSP(M) 320mm Segment
40DPWC 40mm TUBE ½” BSP(M) 320mm Segment
42DPWC 42mm TUBE ½” BSP(M) 320mm Segment
47DPWC 47mm TUBE ½” BSP(M) 320mm Segment
52DPWC 52mm TUBE ½” BSP(M) 450mm Segment
52DPWC 52mm TUBE 1 ¼” UNC(F) 450mm Segment
62DPWC 62mm TUBE 1 ¼” UNC(F) 450mm Segment
67DPWC 67mm TUBE 1 ¼” UNC(F) 450mm Segment
77DPWC 77mm TUBE 1 ¼” UNC(F) 450mm Segment
82DPWC 82mm TUBE 1 ¼” UNC(F) 450mm Segment
92DPWC 92mm TUBE 1 ¼” UNC(F) 450mm Segment
102DPWC 102mm TUBE 1 ¼” UNC(F) 450mm Segment
107DPWC 107mm TUBE 1 ¼” UNC(F) 450mm Segment
112DPWC 112mm TUBE 1 ¼” UNC(F) 450mm Segment
122DPWC 122mm TUBE 1 ¼” UNC(F) 450mm Segment
127DPWC 127mm TUBE 1 ¼” UNC(F) 450mm Segment
132DPWC 132mm TUBE 1 ¼” UNC(F) 450mm Segment
142DPWC 142mm TUBE 1 ¼” UNC(F) 450mm Segment
152DPWC 152mm TUBE 1 ¼” UNC(F) 450mm Segment
162DPWC 162mm TUBE 1 ¼” UNC(F) 450mm Segment
172DPWC 172mm TUBE 1 ¼” UNC(F) 450mm Segment
182DPWC 182mm TUBE 1 ¼” UNC(F) 450mm Segment
202DPWC 202mm TUBE 1 ¼” UNC(F) 500mm Segment
212DPWC 212mm TUBE 1 ¼” UNC(F) 500mm Segment
225DPWC 225mm TUBE 1 ¼” UNC(F) 500mm Segment
250DPWC 250mm TUBE 1 ¼” UNC(F) 500mm Segment
300DPWC 300mm TUBE 1 ¼” UNC(F) 500mm Segment
350DPWC 350mm TUBE 1 ¼” UNC(F) 500mm Segment
400DPWC 400mm TUBE 1 ¼” UNC(F) 500mm Segment
450DPWC 450mm TUBE 1 ¼” UNC(F) 500mm Segment
500DPWC 500mm TUBE 1 ¼” UNC(F) 500mm Segment
