Construction Materials & Metal Blade

DCM-T

Description

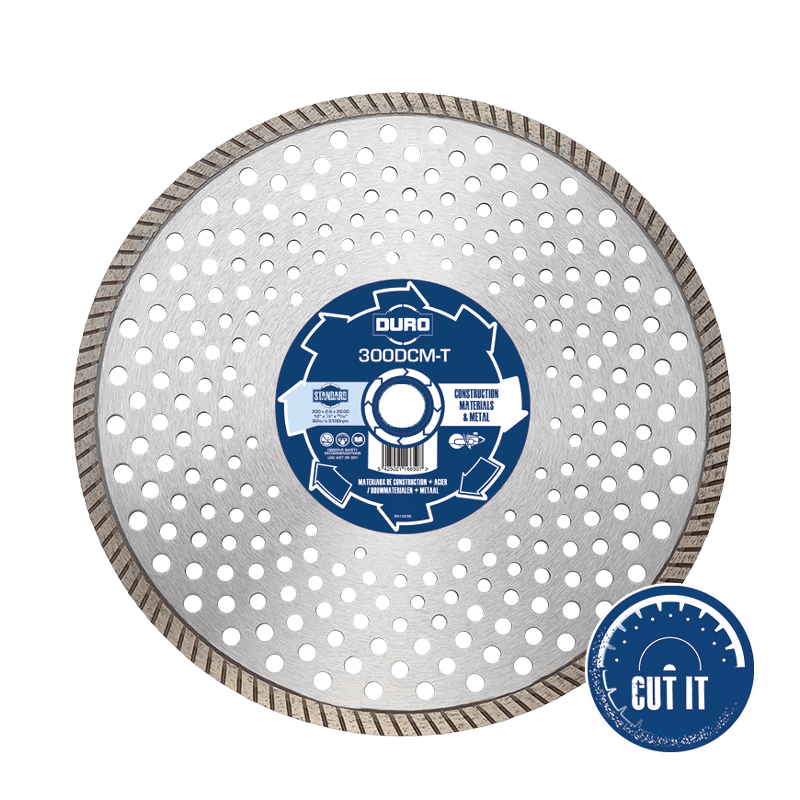

DCM-T is a turbo rim diamond blade with special cooling holes and a reinforced flange centre for increased stability, blade cooling and less chipping. Good cutting speed and life. Reinforced flange on 230 and 300mm diameters.

How Diamond Blade Features Work – pdf »

Technical Information »

Use me for…

Indian stone / Granite / House bricks / Class A Engineering bricks / Clay products / All reinforced concrete types / Ferrous metal sections up to 5mm gauge / Concrete kerbs, beams, lintels & flags.

WITH: Angle Grinders | Petrol Saws  (See size chart below)

Download data sheet for full list of materials that can be cut with the DCM-T blade.

STANDARD QUALITY CONSTRUCTION MATERIALS & METAL BLADE

STONE, GRANITE, BRICKS, CONCRETE, FERROUS METAL UP TO 5MM GAUGE
  • 10mm segments
  • Continuous turbo rim
  • Ventilated core
  • Reinforced flange on 230 / 300mm
  • Great speed of cut & life
  • Less chipping & increased stability

Sizing Options

Part number Diameter Bore Machine
115DCM-T 115mm (4½”) 22.23mm Angle Grinders
230DCM-T 230mm (9″) 22.23mm Angle Grinders
300DCM-T 300mm (12″) 20.00mm Petrol Saws
